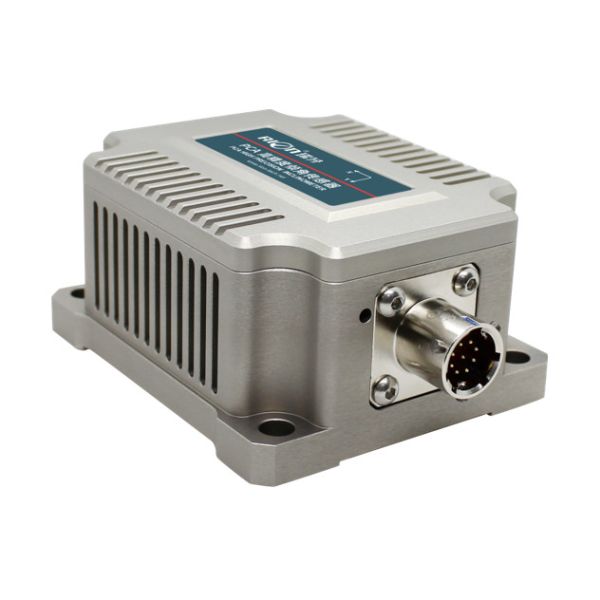

Linear High Precision Inclinometer Sensor For Bridge Buiding Dam Safety Monitor

  • 1
  • 2

Brand Name : RION

Model Number : PCA826-C1

Certification : CE, ISO

Place of Origin : Guangdong, China

MOQ : 1

Price : $703.00/Pieces 1-9 Pieces

Payment Terms : T/T, Paypal

Supply Ability : 500/month

Delivery Time : 7 days for samples

Packaging Details : 1pcs/box ,100pcs/ctn

Name : wind power/bridge/dam monitor

output : RS485, RS422, CAN2.0

waterproof : IP67

Size : L82×W70×H42mm

Absolute accuracy : ±0.001deg

Response frequency : 0.04s

Contact Now

linear angle sensor high precise resolution incline sensor for bridge buiding dam incline safety monitor

▶ INSTALLATION PRECAUTION

Please install the tilt sensor according to the correct method. Incorrect installation will cause measurement errors. Pay special attention to one "surface" and two "line":

1) The sensor mounting surface and the surface to be measured must be fixed tightly, flat and stable, if installation surface is unevenness, it will cause the angle error.

2) The axis of the sensor and the axis to be measured must be parallel, and there should be no angle between the two axes as possible.

Linear High Precision Inclinometer Sensor For Bridge Buiding Dam Safety Monitor

Specification
PCA826T　 CONDITION PARAMETERS UNIT
Measure range ±5 ±10 ±30 ±60 °
Measure axis XY XY XY XY
Resolution 0.0005 0.0005 0.0005 0.0005 °
Measure accuracy @25℃ 0.001 0.002 0.003 0.005 °
Long-term stability 0.02 0.02 0.03 0.04 °
Zero temp coefficient -40～85℃ 0.0002 0.0002 0.0002 0.0002 °/℃
Sensitivity temp coefficient -40～85℃ ≤50 ≤50 ≤50 ≤50 ppm/℃
Power on time <0.4 <0.4 <0.4 <0.4 S
Response frequency 0.04 0.04 0.04 0.04 S
Output rate 5Hz,10Hz,25Hz,35Hz,50Hz,100Hz. Can be set
Ouput signal RS485/RS422 optional
EMC According to EN61000 and GBT17626
MTBF ≥50000 hour/time
Insulation Resistance ≥100 MΩ
Shockproof 100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms,10～1000Hz
Protection grade IP67
Cables Standard configuration 1 meter, wear-resistant, wide temperature, shielded cable, mm aviation connector
Weight 385g (exclude cable)
